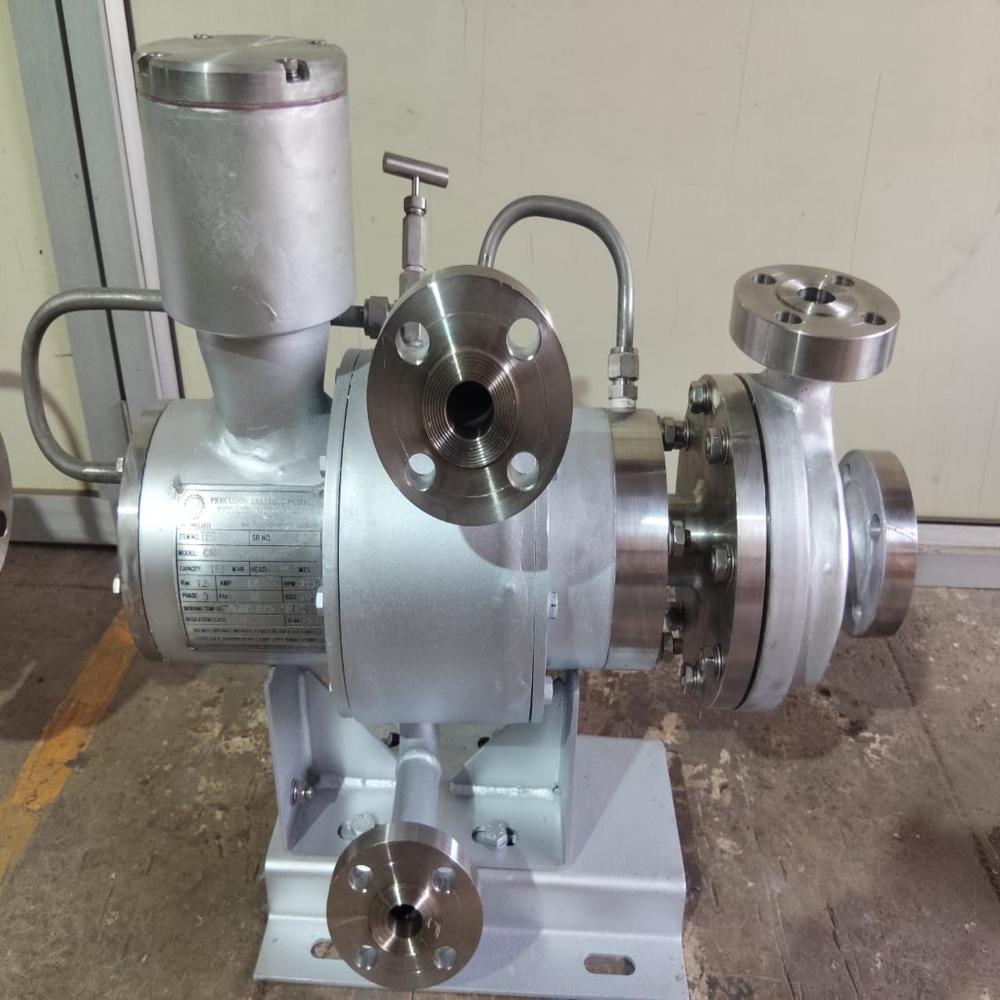

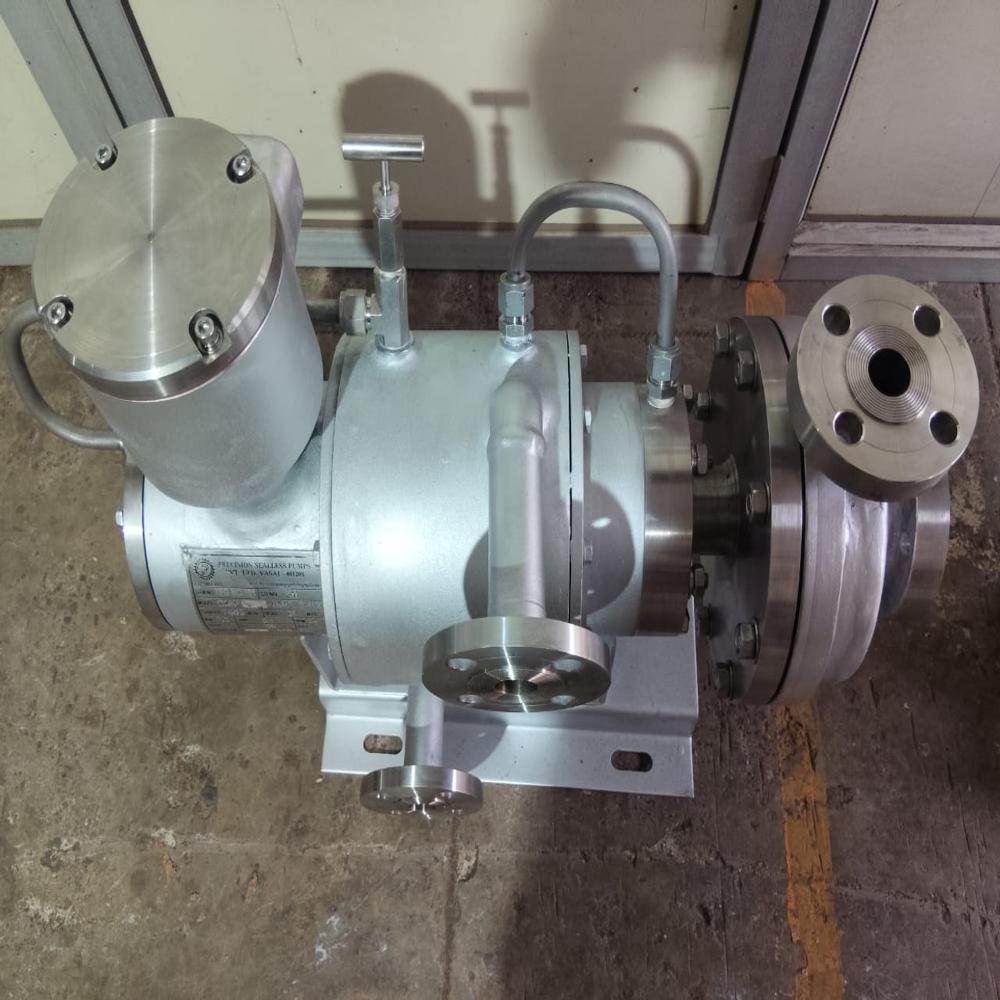

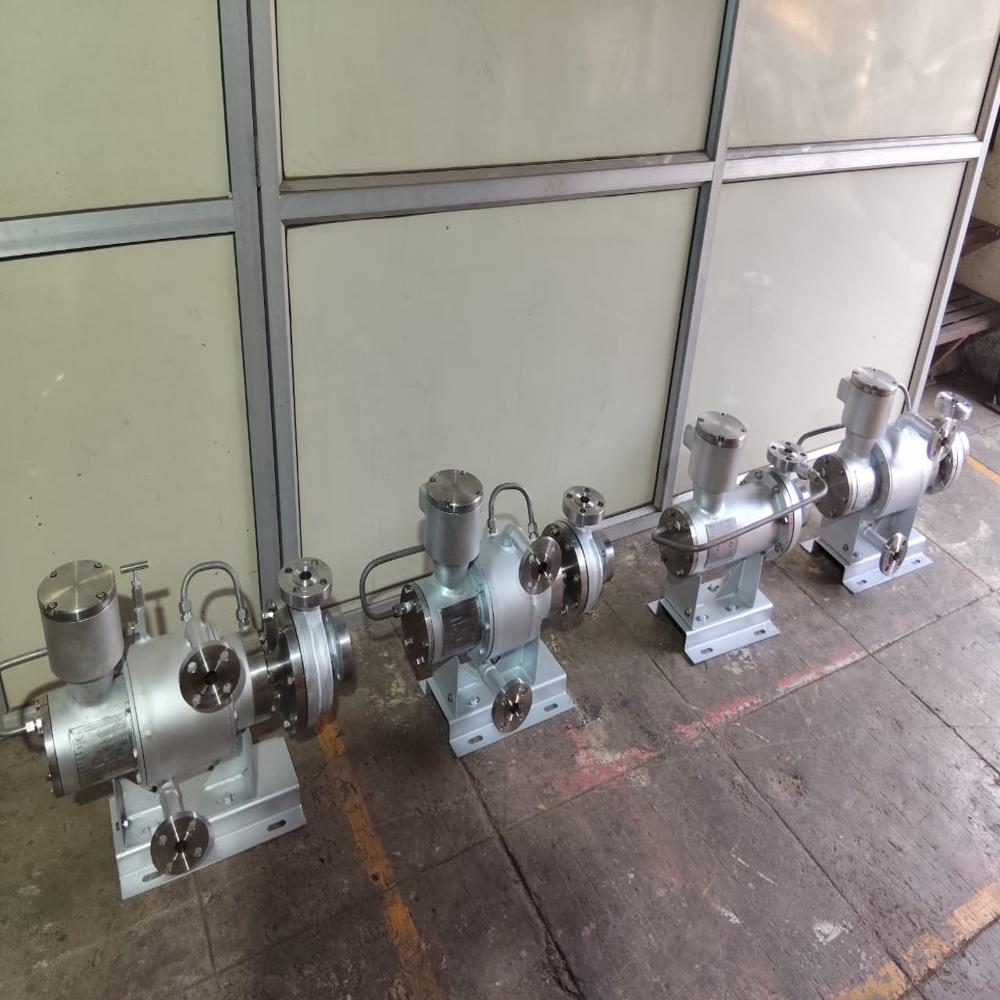

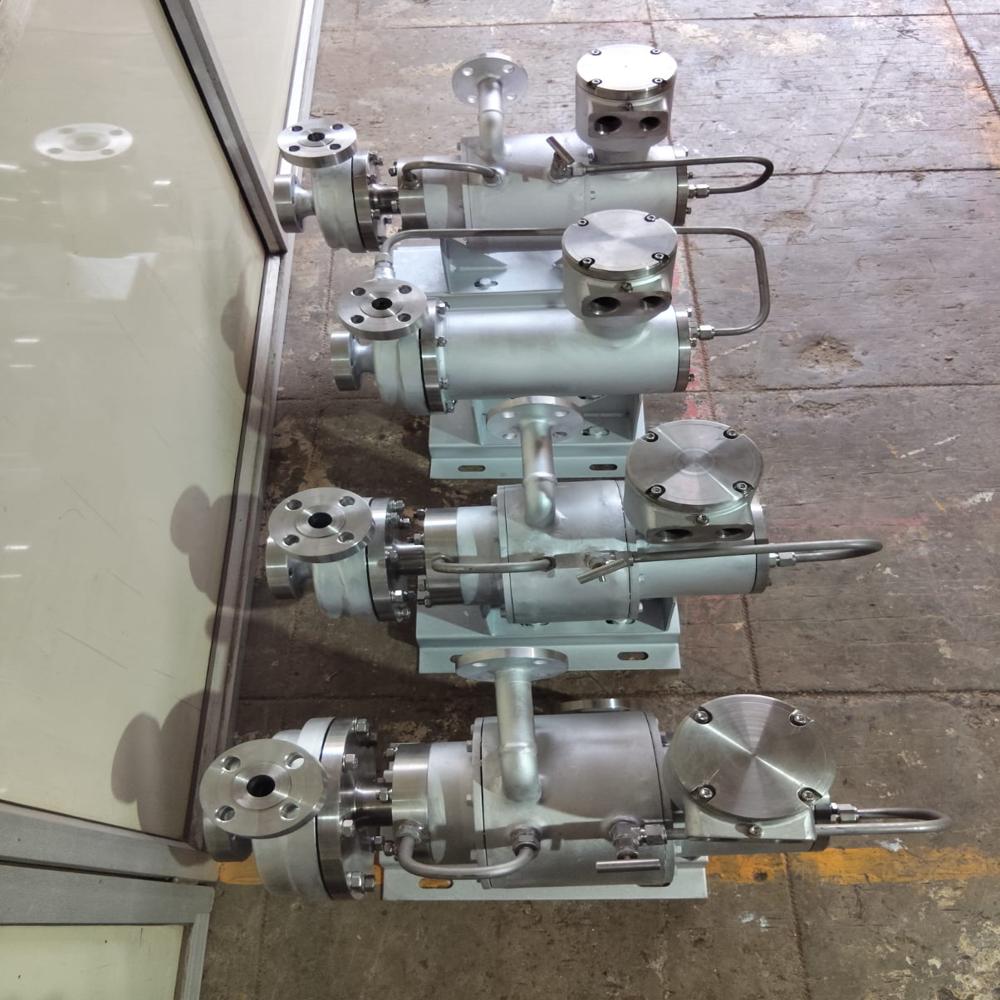

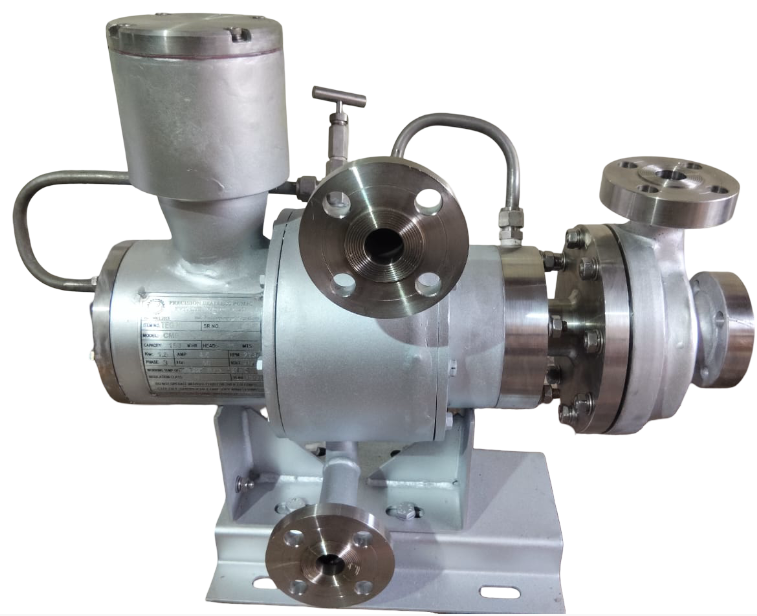

High Temperature Canned Motor Pump

Get a Price/Quote

MOQ : 1 Unit

High Temperature Canned Motor Pump Specification

Features
Leakproof, Maintenance Free, High Efficiency, High Temperature Handling, Explosion Proof

Frequency
50Hz / 60Hz

Caliber
DN25 - DN150

Head Size
Up to 120 meters

Theory
Centrifugal Pump

Working Temperature
-40C to 400C

Flow Rate
Up to 300 m3/hr

Speed
2900 - 3500 RPM

Control System
PLC Compatible / DCS Integration

Max Suction
Up to 5 meters

Inlet/Outlet
25 mm - 150 mm

Noise Level
75 dB

Voltage
380V / 415V, 3 Phase, 50Hz / 60Hz

Discharge Pressure
Up to 2.5 MPa

Mounting Type
Baseplate Mounted

Material
Stainless Steel / Carbon Steel

Structure
Horizontal, Single Stage, Sealless

Power
0.37kW to 75kW

Standard
API 685 / ISO 2858 / JB/T 7742

Fuel Type
Electric Motor Driven

Pressure
Up to 2.5 MPa

Usage
Handling of high temperature, toxic, explosive and corrosive liquids

Application
Petrochemical, Chemical, Pharmaceutical, Power Plant, Oil Refinery, Hot Oil Transfer, Thermal Oil

Suction Type
Flooded / Negative

Seals Type
Sealless (Canned Motor Type)

Priming
Self-priming / Non self-priming (As per design)

Pump Type
Canned Motor Pump

Capacity
Up to 300 m3/hr

Impeller Type
Enclosed / Semi-open

Paint Finish
Epoxy Paint or as Required

Optional Accessories
Base Frames, Vibration Isolators, Monitoring Instruments

Bearing Cooling
Forced Circulation (Motor Cooling by Pumped Liquid)

Maintenance
No Shaft Seal Maintenance Required

Other Standards
Compliant with CE/ATEX on request

Protection Grade
IP55 / IP56

Motor Type
Fully Enclosed Canned Motor

Rotor Type
Wet Rotor

Ambient Temperature
-20C to +55C

Flow Measurement
Available on Request

Insulation Class
F & H

Vibration Level
4.5 mm/s

Thermal Protection
Optional PT100 / Temperature Sensors

Installation
Horizontal Floor Mounted

Voltage Tolerance
10%

Corrosion Resistance
High (Specific alloys on request)

High Temperature Canned Motor Pump Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
2-10 Days

Main Domestic Market
All India

About High Temperature Canned Motor Pump

The High Temperature Canned Motor Pump is the most in-demand solution for hazardous and challenging industrial environments, offered at an unbeatable price with exclusive markdowns. This dazzling pump features unprecedented reliability, thanks to its sealless, fully enclosed design and enviable thermal endurance. Built with robust stainless steel or carbon steel, it handles temperatures from -40C to 400C and pressures up to 2.5 MPa. Engineered for maximum efficiency, high corrosion resistance, and leakproof operation, it meets stringent global standards (API 685, ISO 2858) and is ideal for petrochemical, chemical, power plant, and refinery applications. Exported and supplied from India worldwide.

Versatile High Temperature Solutions for Critical Applications

The High Temperature Canned Motor Pump is expertly designed for facilities where safety, reliability, and continuous operation are non-negotiable. Its enviable performance makes it the premier choice in petrochemical plants, pharmaceutical industries, oil refineries, and power generation sectors. With construction options in stainless or carbon steel and high corrosion resistance, it is tailored for use with toxic, explosive, or corrosive liquids. Easy horizontal floor mounting ensures seamless integration, whatever your process demands.

Sample Policy, Domestic and Export Markets

We offer a flexible sample policy to help clients validate the market value of our High Temperature Canned Motor Pump before bulk procurement. Samples are meticulously packaged with a nominal charge applied, ensuring safe transit worldwide. Our primary domestic market is India, while our export network extends globally across major industrial hubs. We respond promptly to inquiries, support volume export orders, and uphold international standards in product delivery and packaging quality.

FAQ's of High Temperature Canned Motor Pump:

Q: How does the high temperature canned motor pump ensure safe operation in hazardous environments?

A: The pump uses a fully enclosed canned motor design, eliminating shaft seals and minimizing leak points. Its robust insulation class, forced bearing cooling, and explosion-proof construction ensure reliable, leakproof, and safe operation, even with toxic or explosive media.

Q: What materials are available for construction and how do they resist corrosion?

A: Our pumps are crafted from stainless steel or carbon steel, offering high corrosion resistance. Specific alloys are also available upon request to meet unique chemical compatibility needs, making them suitable for aggressive industrial environments.

Q: Where can the high temperature canned motor pump be installed?

A: Designed for horizontal, floor-mounted installations, this pump is compatible with a variety of industrial sites such as chemical plants, oil refineries, pharmaceutical units, and power plants, making it an adaptable choice for different process requirements.

Q: What maintenance is required for this sealless canned motor pump?

A: Thanks to its innovative sealless design, the pump requires no shaft seal maintenance, resulting in lower downtime, fewer leakages, and reduced maintenance costs over its operational life.

Q: How is bearing and motor cooling achieved in this pump?

A: The pump's bearing and motor are cooled by forced circulation using the pumped process liquid, ensuring stable operation and extending component life even at high temperatures.

Q: What kind of certifications and standards can the pump comply with?

A: The pump can be supplied in accordance with CE and ATEX certifications on request, and conforms to API 685, ISO 2858, and JB/T 7742 standards, ensuring international quality and safety compliance.
